Wheel Studs & Bolts

Need text

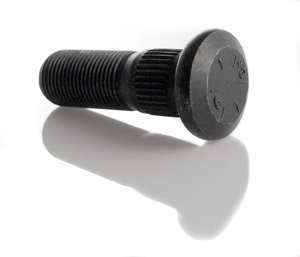

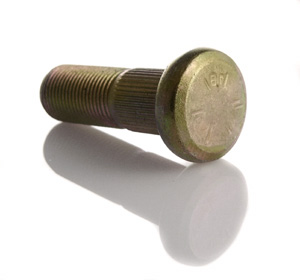

WHEEL BOLTS & STUDS



DIAMETER

3/4"-10
3/4"-16
3/4"-16
3/4"-16
3/4"-16
3/4"-16
3/4"-16
7/8"-9
1"-8
1-5/16"-12
1-5/16"-12
1-5/16"-12
M24-3.0
LENGTH (mm)

98.4
60.3
58.7
115.8
54
82.6
63.5
57.2
117.5
128.6
101.6
85.7
118
LENGTH (in.)

3.87
2.38
2.31
4.56
2.13
3.25
2.50
2.25
4.63
5.06
4.00
3.37
4.65

REFERENCE NO.

9K7807
1V3323, 7K0537
9R5219
3K1865
1V1983
3V4247, 4K6754
3V4045
7D0053
8X2560
2G4996
4D8695
5D1183
8X0274

WHEEL NUTS


DIAMETER

5/8"-11
3/4"-16
3/4"-16
1-5/16"-12
W.A.F.

1-1/16"
1-1/2"
1-1/2"
1-3/4"

THICK

39/64"
21/32"
7/8"
1-7/32"
REFERENCE NO.

4D6171
3K0453
6K9316
5D0765




* All manufacturers’ part numbers listed are for reference purposes only and it is not implied that any items shown are a product of these manufacturers.
